PES drone detector with remote control and web interface.

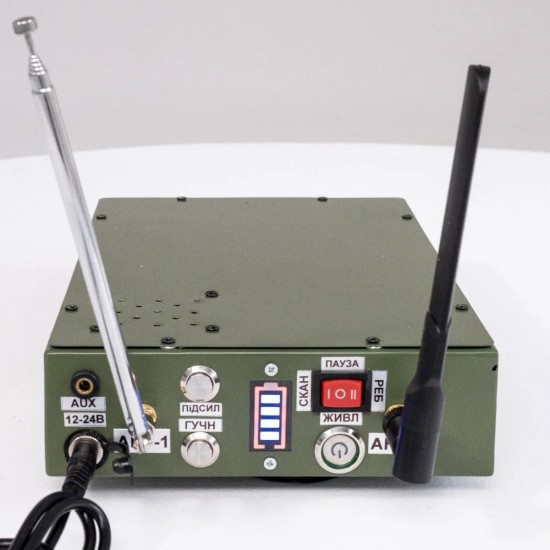

PES Drone Detector

    The "PES" drone detector is a compact and powerful device designed to detect unmanned aerial vehicles across a wide frequency range of 150-6000 MHz. With a detection range of up to 2000 meters and full 360-degree coverage, the device effectively provides protection against aerial threats.

    "PES" can operate autonomously for 6-8 hours, using power from the built-in battery (8.4 Ah) or from a vehicle onboard power supply (12-24 V), making it a versatile solution for mobile use. Its compact dimensions (22 × 15 × 5 cm) and weight of 2 kg allow for easy transportation and deployment in any conditions.

    Thanks to instant startup within 30 seconds after power-on, "PES" is ready for operation without lengthy setup. The device is equipped with a display showing the battery charge level. A shock-resistant metal корпус with IP54 protection ensures reliable resistance to dust and water splashes. The operating temperature range is from -20°C to +40°C.

    The device features a "POWER" button with a light indicator that flashes when a signal is detected. If the signal level exceeds a preset threshold, the detector emits an audible alert and announces the detected signal frequency by voice. As the signal source approaches, the detector issues a voice warning: "Closer." When no signals are detected for a certain period, a voice message announces: "The sky is clear, no signals detected," and the indicator stops flashing. The scanning and threat detection speed is 3-5 seconds.

    For user convenience, the detector supports connection of an external LED indicator that flashes simultaneously with the button, duplicating signal alerts, as well as external speakers via the AUX connector. This allows the detector to be placed in a bunker or on upper floors of a building while monitoring the situation from a safe location. All detected signals and their power levels are duplicated in a web interface, where they can be monitored on a real-time visual chart.

    Thanks to its advanced technical characteristics and ease of use, "PES" is ideally suited for units of the Armed Forces of Ukraine, Territorial Defense, and other security agencies operating under the threat of FPV drones and other unmanned systems. You can ознакомиться with the user manual for the PES detector via the provided link.

Key Advantages

• Maximum frequency coverage: Detects threats in the 150-6000 MHz range, including control and video transmission channels.
• Integration with the "Zhuk 2M" EW system: Supports connection to the external "Zhuk 2M" electronic warfare system and automatically activates it without operator involvement when threats are detected.
• Full 360° scanning: Simultaneous monitoring of all directions without antenna adjustment.
• Flexible control: Supports control via onboard buttons, remote access via Ethernet cable, and configuration via Wi-Fi.
• Reinforced housing protection: Metal корпус resistant to dust, moisture, and impacts.
• Enhanced alerts: Voice threat warnings and a built-in battery charge indicator.
• Universal power supply: Operation from the built-in battery or directly from an onboard power network (12-24 V).

Technical Specifications

• Weight: 2 kg
• Housing dimensions: 22 × 15 × 5 cm
• Scanning spectrum: 150-6000 MHz
• Detection range: 0-2000 m
• System coverage: 360 degrees
• Power supply: battery, vehicle power (12-24 V)
• Battery life: 6-8 hours
• Operating temperature range: -20°C to +40°C
• System control: buttons on the housing, Ethernet
• Readiness time: up to 30 seconds after power-on
• Built-in battery capacity: 8.4 Ah
• Voice operation alerts: yes
• Digital battery charge display: yes
• Scanning/detection speed: 3-5 seconds
• Housing material: metal
• Housing protection: IP54

Package Contents

• Device - 1 pc
• Antennas - 2 pcs
• Power supply - 1 pc
• Cigarette lighter power adapter - 1 pc
• Ethernet RJ-45 cable - 1 pc
• AUX Mini-Jack 3.5 mm cable - 1 pc
• EW system connection cable - 1 pc
• User manual - 1 pc
